FMB965
€47.60
31peoples are viewing this right now
Estimate delivery times: 3-5 days International.
Free shipping & returns: on orders over €30.
Use code "WELCOME5" for discount 5% on your first order.
Guarantee Safe Checkout:
Description
Description
2G low-energy consumption and water-resistant tracker for motorcycles
Ultra-low 1 mA power consumption
Innovative Power Off sleep mode for ultra-low 1 mA power consumption
Protection against dust and water
Robust IP67-rated casing provides trusted protection against dust and resistance to water

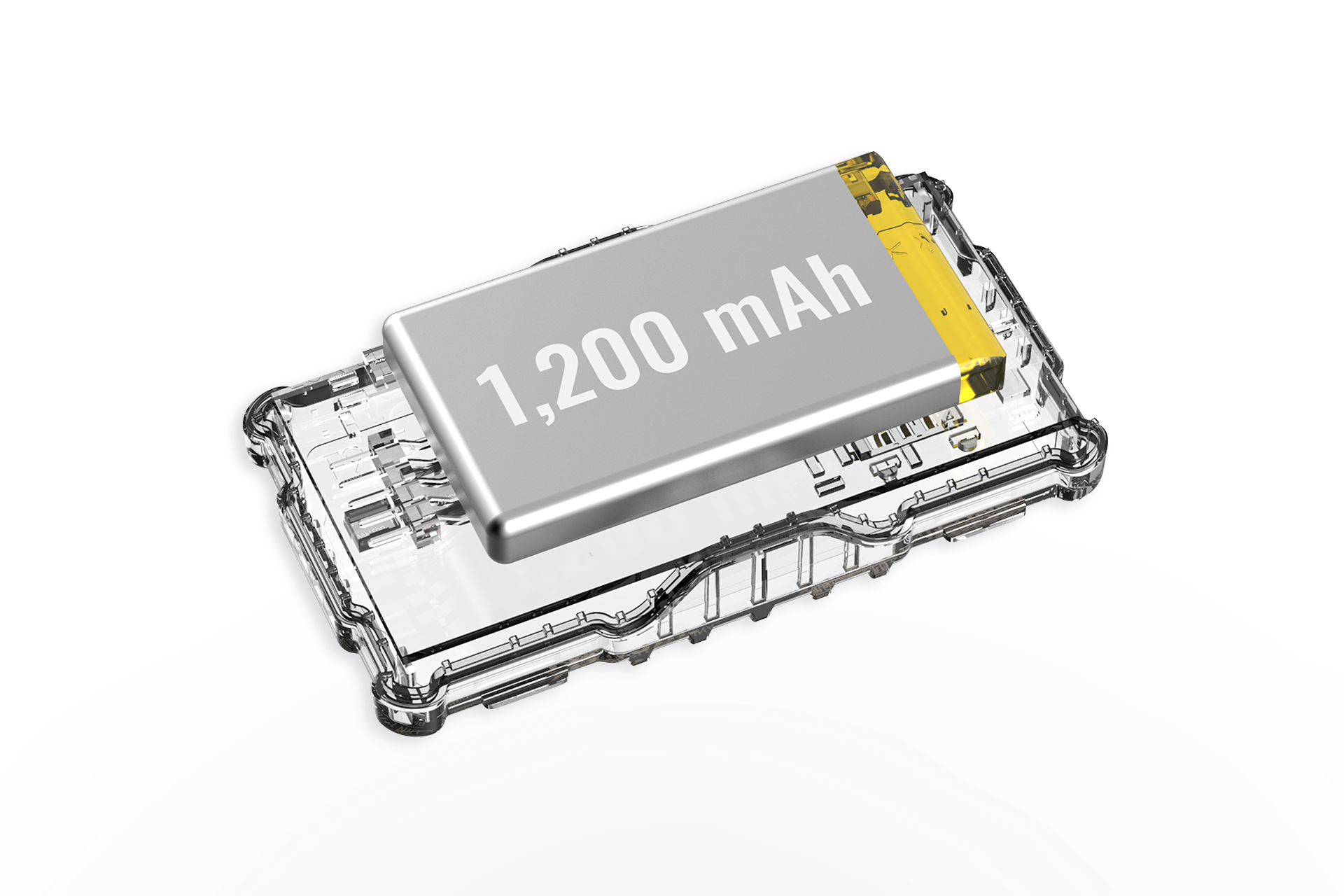

Prolonged autonomous usage
Large-capacity 1,200 mAh Li-ion internal backup battery for extended device operation time
Extended product usage scenarios
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors to monitor temperature, humidity, magnet detection, and movement
Additional Information
Additional information
| Module Name | Teltonika TM2500 |
|---|---|
| Technology | GSM, GPRS, GNSS, BLUETOOTH® LE |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 tracking channels, 99 acquisition channels |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Power Input voltage range | 10–30 V DC with overvoltage and reverse polarity protection |
| Power Internal Back-up battery | 1200 mAh Li-Ion battery |
| Power Internal fuse | 3A, 125V |
| Power consumption | At 12V < 1.00 mA (Power Off sleep) At 12V < 2.40 mA (Deep Sleep), At 12V < 2.64 mA (Online Deep Sleep), At 12V < 6.1 mA (GPS Sleep), At 12V < 22.82 mA (nominal with no load), At 12V < 250 mA Max. (with full Load / Peak) |
| Bluetooth® Technology Specification | 4.0 + LE |
| Bluetooth® Technology Supported peripherals | EYE beacon and sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Bluetooth ® LE beacons and sensors support |
| Dimensions | 79 x 43 x 22 mm (L x W x H), 89 x 43 x 22 mm (L x W x H) (length with connector socket) |
| Weight | 74 g |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP67 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months |
| Operating temperature (with battery) | -20 °C to +40 °C |
| Digital Inputs | 1 |
| Digital Outputs | 2 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| Certification & approvals | CE-RED/UKCA, E-mark, REACH, RoHS |
Free shipping on orders over €30
Quantity discount: 5 or more units, then another discount for orders of 10 or more units.
