FMC920 4G
€50.60
2peoples are viewing this right now
Estimate delivery times: 3-5 days International.
Free shipping & returns: on orders over €30.
Use code "WELCOME5" for discount 5% on your first order.
Guarantee Safe Checkout:
Description
Description
The most popular compact 4G LTE Cat 1 model for basic tracking
Eco driving scenario for all-round better driving
Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario

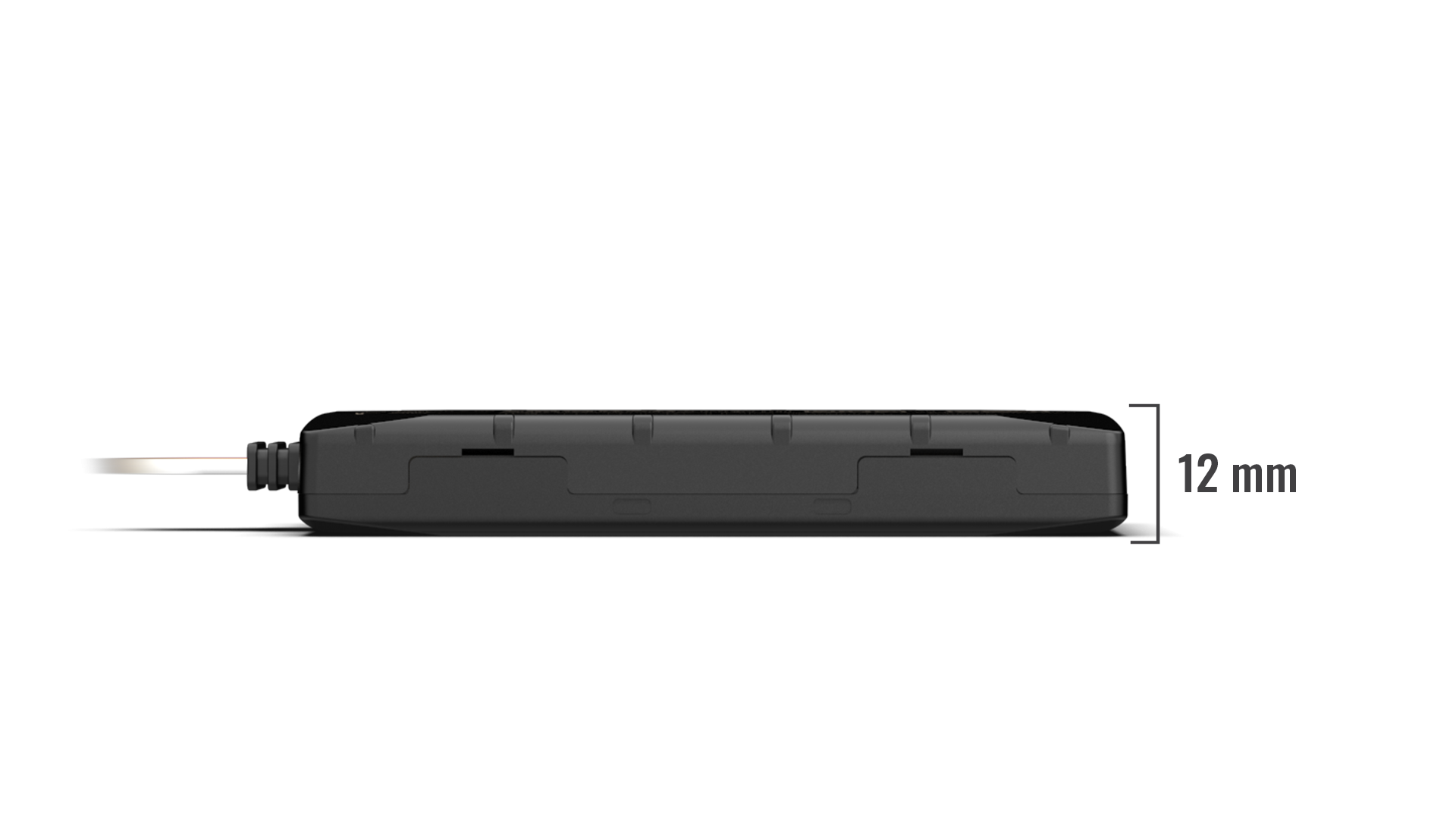

Slim design to fit the tightest spaces
12 mm-height device can be easily fitted in the tightest spaces
Extensive remote monitoring possibilities

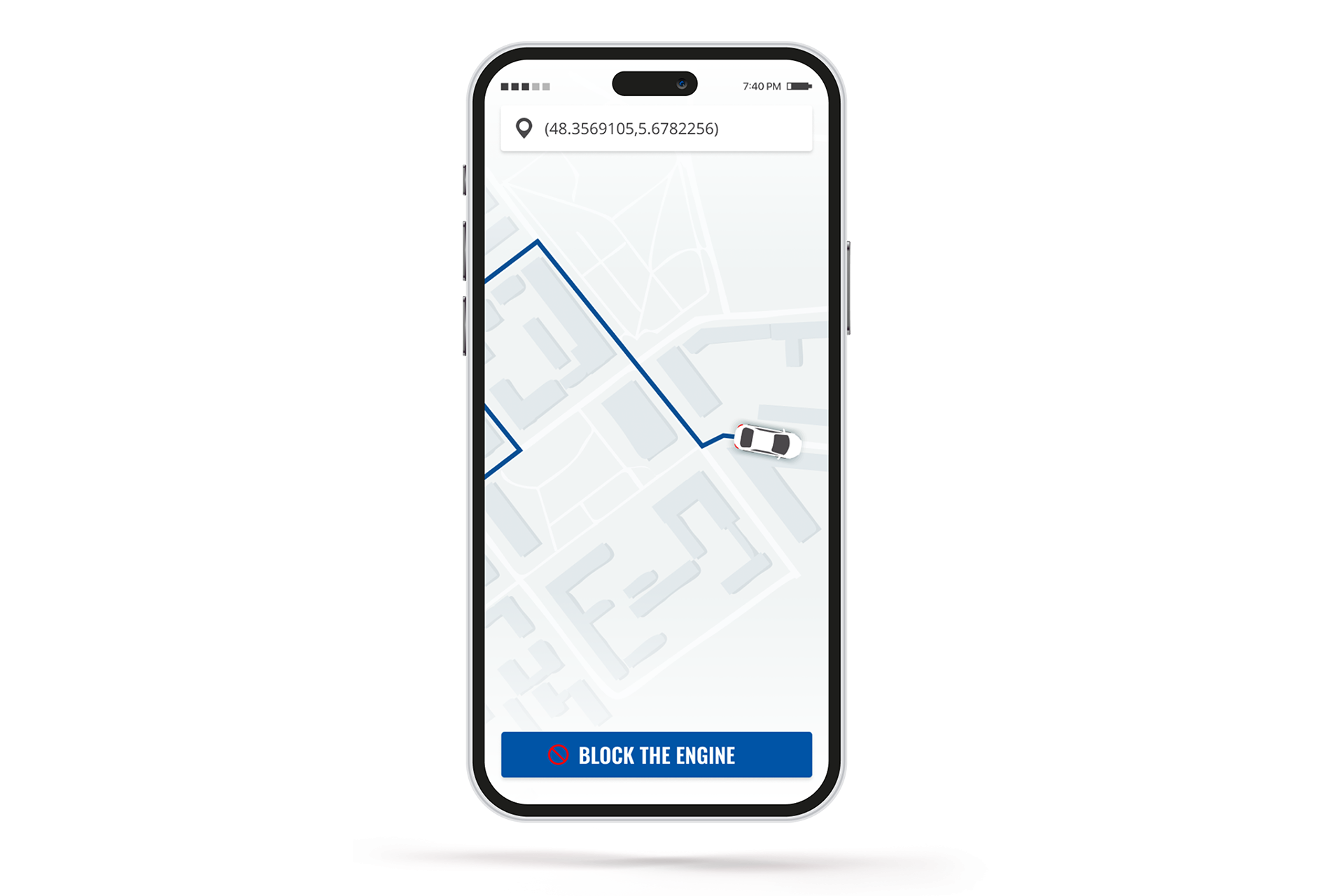

Blocking engine remotely among the numerous available fleet control measures
Extended product usage scenarios
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement
Additional Information
Additional information
| Module Name | FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500, FMC920-QKIB0: Quectel EG915U-LA with Teltonika TM2500 |
|---|---|
| Technology | LTE Cat 1, GSM, GPRS, GNSS, BLUETOOTH® LE |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 tracking channels, 99 acquisition channels |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular Technology | LTE Cat 1, GSM |
| 2G bands | FMC920-QJIB0: GSM: B2/B3/B5/B8, FMC920-QKIB0: GSM: B2/B3/B5/B8 |
| 4G LTE bands | FMC920-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28, FMC920-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66 |
| Data transfer | LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL), LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL), GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL) |
| Data support | SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT) |
| Power Input voltage range | 10 – 30 V DC with overvoltage protection |
| Power Internal Back-up battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) |
| Power Internal fuse | 3A, 125V |
| Power consumption | At 12V < 2 mA (Ultra Deep Sleep), At 12V < 3 mA (Deep Sleep), At 12V < 8mA (Online Deep Sleep), At 12V < 12 mA (GPS Sleep), At 12V < 28 mA (nominal with no load), At 12V < 2 A Max. (with full Load / Peak) |
| Bluetooth® Technology Specification | 4.0 + LE |
| Bluetooth® Technology Supported peripherals | EYE beacon and sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Bluetooth ® LE beacons and sensors support |
| Dimensions | 79 x 43 x 12 mm (L x W x H) |
| Weight | 54 g |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP54 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months |
| Operating temperature (with battery) | -20 °C to +40 °C |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| Certification & approvals | FMC920-QJIB0: CE/RED, CITC, E-Mark, RCM, REACH, RoHS, TRA, SDPPI (POSTEL), SIRIM QAS, TRA, FMC920-QKIB0: Anatel, REACH, RoHS |
