FMM130 M1
€75.50
11peoples are viewing this right now
Estimate delivery times: 3-5 days International.
Free shipping & returns: on orders over €30.
Use code "WELCOME5" for discount 5% on your first order.
Guarantee Safe Checkout:
Description
Description
Advanced 4G LTE Cat M1 tracker with flexible inputs
Extensive remote monitoring possibilities
Blocking engine remotely among the numerous available fleet control measures

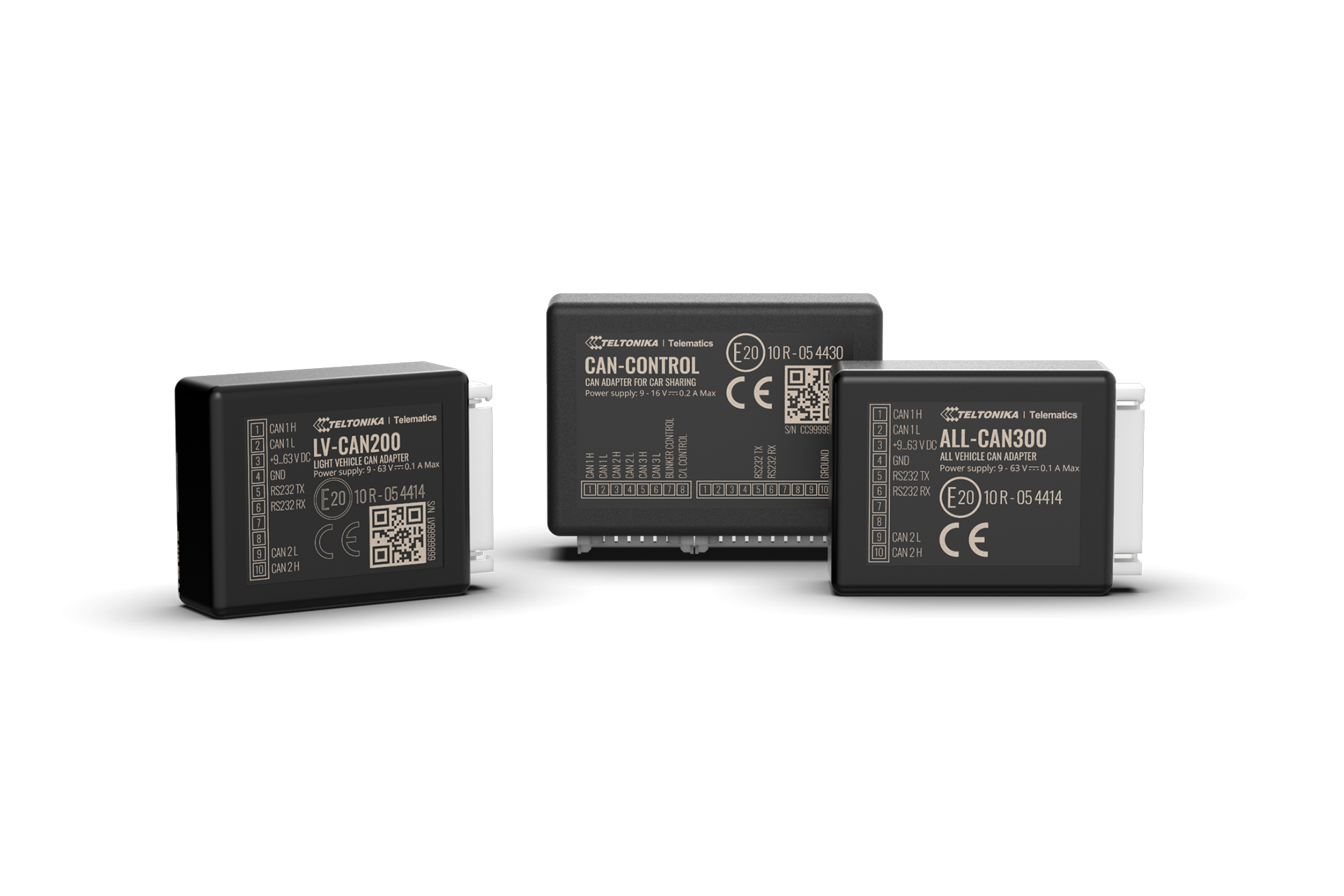

CAN adapter support
Reading fuel, odometer, RPM, engine temperature and more data from light & electric vehicles, trucks, buses, and special machinery

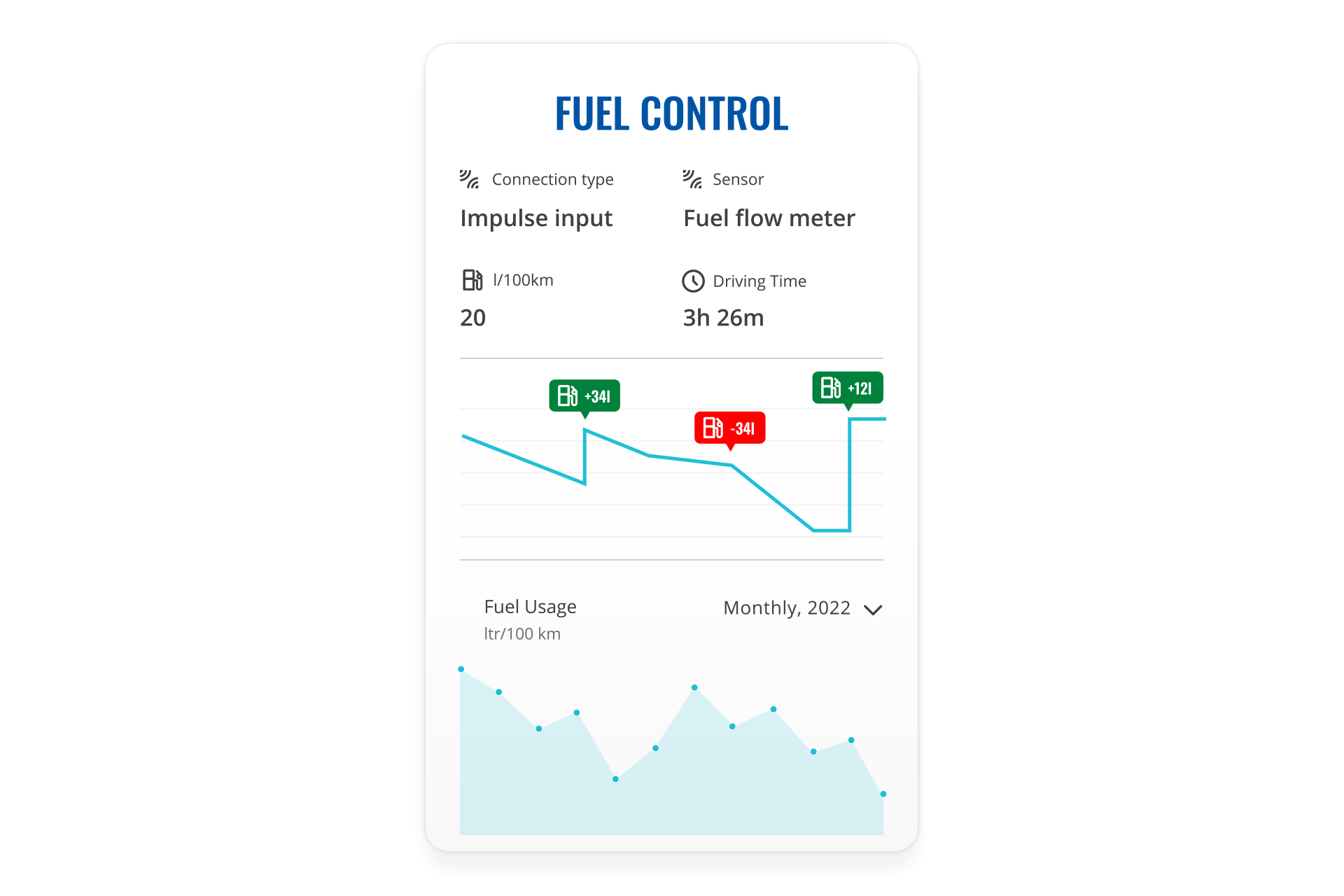

Accurate fuel usage control
Impulse input for reading fuel flow meter data and precisely controlling fuel usage
Extended product usage scenarios
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement
Additional Information
Additional information
| Module Name | Quectel BG95-M3, Quectel BG96, Teltonika TM2500 |
|---|---|
| Technology | LTE CAT M1, NB-IoT, GSM, GPRS, GNSS, BLUETOOTH® LE |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 tracking channels, 99 acquisition channels |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular Technology | LTE CAT M1, NB-IoT, GSM |
| 2G bands | BG95-M3: B2/B3/B5/B8, BG96: B2/B3/B5/B8 |
| 4G LTE Cat M1 bands | BG95-M3: |
| Data transfer | BG95-M3: |
| Data support | SMS (text/data) |
| Power Input voltage range | 10 – 30 V DC with overvoltage protection |
| Power Internal Back-up battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) |
| Bluetooth® Technology Specification | 4.0 + LE |
| Bluetooth® Technology Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth®LE sensors support |
| Dimensions | 65 x 56,6 x 20,6 mm (L x W x H) |
| Weight | 55 g |
| Operating temperature (without battery) | -20 °C to +85 °C |
| Storage temperature (without battery) | -20 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months |
| Operating temperature (with battery) | -20 °C to +40 °C |
| Digital Inputs | 3 |
| Analog Inputs | 2 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM, eSIM |
| Memory | 128MB internal flash memory |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, *Jamming |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
| Certification & approvals | CE/RED, E-mark, RCM, EAC, REACH, RoHS, CITC, TRA, ANATEL |
